The BMW M54 engine, known for its powerful performance and smooth operation, is equipped with an advanced technology called VANOS (Variable Nockenwellen Steuerung) system. This, at the time, innovative system played a crucial role in optimizing engine performance, improving torque delivery, and enhancing fuel efficiency. However, like any complex mechanical component, the VANOS system can develop issues over time, impacting the engine’s performance and drivability.
In this comprehensive guide, we will delve into the world of BMW M54 VANOS troubleshooting. Whether you’re a BMW enthusiast or an M54 engine owner, understanding the common problems associated with the VANOS system is essential for maintaining your engine’s health and performance. We will explore the various symptoms that indicate VANOS issues, the potential causes behind these problems, effective diagnostic techniques, and practical solutions to address them.
Understanding BMW M54 VANOS System
The BMW M54 engine features an advanced VANOS (Variable Nockenwellen Steuerung) system, specifically the double VANOS variant, known as “Doppel-VANOS.” The VANOS system plays a crucial role in optimizing engine performance by controlling the timing of both the intake and exhaust camshafts independently.
Double VANOS System
The double VANOS system in the BMW M54 engine provides precise control over the timing of the intake and exhaust camshafts. By independently adjusting the timing of both camshafts, the double VANOS system optimizes power delivery throughout the entire RPM range. This results in improved low-end torque for better acceleration and increased horsepower at higher RPMs for enhanced performance.
The double VANOS system utilizes two oil pressure-controlled cam gears fitted with splines, one for each camshaft. These gears work in conjunction with the engine’s oil pressure to dynamically adjust the camshaft timing based on factors such as engine speed, load, and throttle input.
By optimizing the valve timing, the double VANOS system enhances the engine’s responsiveness, overall power output, and fuel efficiency. You can read more about how VANOS works in our dedicated VANOS guide. There, you’ll find all kinds of information on the difference between the double VANOS found in the M54, and the earlier single VANOS systems.
The integration of the double VANOS system in the BMW M54 engine allowed BMW to extract maximum performance while maintaining efficiency. More than they were able to with the single VANOS system found in earlier engines.
Understanding the functionality and significance of the double VANOS system in the BMW M54 engine sets the foundation for identifying and addressing potential VANOS-related issues. In the upcoming sections, we will explore common symptoms that may indicate VANOS problems, potential causes behind these issues, effective diagnostic techniques, and appropriate solutions to maintain optimal engine performance.
Common Symptoms of VANOS Issues
The double VANOS system in the BMW M54 engine, while a remarkable piece of engineering, can experience issues over time. It is important to be aware of the common symptoms that may indicate VANOS problems. Recognizing these signs will enable timely identification and resolution of potential issues. Here are some of the common symptoms to watch out for:
Rough Idle: A rough or uneven idle is a common indication of VANOS problems. The engine may feel shaky or unstable when idling, and you may notice fluctuations in RPM. This symptom often suggests improper timing adjustments or a malfunctioning VANOS solenoid.
Loss of Power: If you experience a noticeable decrease in engine power, particularly during acceleration, it could be a sign of VANOS issues. The timing variations caused by VANOS malfunctions can result in reduced torque and overall power output.
Engine Misfires: VANOS problems can lead to engine misfires, where the combustion process is disrupted. This symptom often manifests as a noticeable hesitation or jerking sensation during acceleration. Misfires can be attributed to incorrect valve timing caused by VANOS system irregularities.
Unusual Engine Noises: VANOS issues can contribute to unusual engine noises. You may hear rattling, ticking, or clicking sounds coming from the engine compartment. These noises can indicate problems with the VANOS gears, components, or the VANOS solenoids.
Increased Fuel Consumption: If you notice a sudden increase in fuel consumption without any other apparent causes, VANOS problems could be to blame. Timing irregularities and inefficient valve control can lead to suboptimal combustion, resulting in reduced fuel efficiency.
It is important to note that these symptoms can also be related to other engine or mechanical issues. Therefore, a proper diagnosis is crucial to accurately identify VANOS-related problems. Utilizing diagnostic tools specifically designed for BMW vehicles can help pinpoint the exact cause of the symptoms.
In the next section, we will explore potential causes behind VANOS issues, providing insights into what might be contributing to these symptoms.
Potential Causes of VANOS Issues
VANOS problems in the BMW M54 engine can arise due to various factors. Understanding the potential causes behind these issues can help in diagnosing and resolving VANOS-related problems effectively. Here are some common culprits:
Oil Sludge Buildup: Over time, the accumulation of oil sludge can hinder the smooth operation of the VANOS system. Sludge can clog the small passages and restrict the flow of oil to the VANOS components, leading to improper timing adjustments and reduced performance. Oil sludge can be prevented through proper preventative maintenance.
Get high-quality engine oil for your M54 engine!

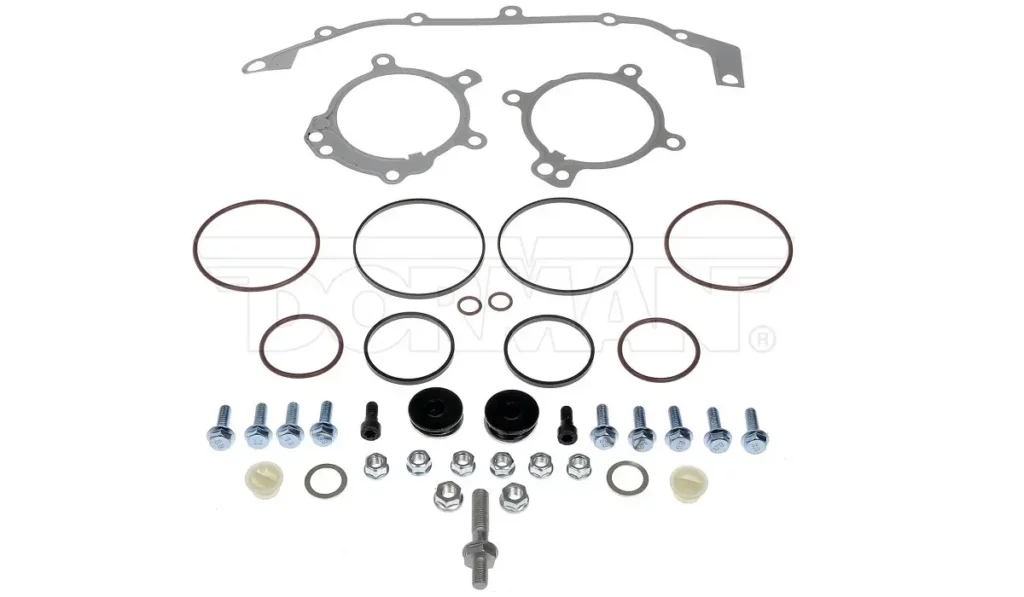

Worn-out Seals: The seals within the VANOS unit can deteriorate with age or prolonged use. Leaking or degraded seals can result in oil leaks, loss of oil pressure, and compromised VANOS performance. This can manifest as timing irregularities and associated symptoms.
Find replacement VANOS seals for M54 Engine!
VANOS Solenoid Failure: The VANOS solenoids are responsible for controlling the oil pressure that actuates the VANOS system. Solenoid failures can disrupt the proper functioning of the VANOS system, leading to timing issues and subsequent symptoms such as rough idle or loss of power.
Find replacement VANOS solenoids for the BMW 3.0L M54!
Mechanical Wear: The mechanical components of the VANOS system, including the VANOS gears and pistons, can experience wear and tear over time. Excessive wear can cause timing discrepancies and hinder the precise adjustments necessary for optimal performance.
Incorrect Oil or Lack of Maintenance: Utilizing the incorrect oil viscosity or neglecting regular oil changes can have a detrimental effect on the VANOS system. Inadequate lubrication or poor-quality oil can lead to increased friction, wear, and overall degradation of the VANOS components.
Environmental Factors: Extreme temperature variations, such as prolonged exposure to excessive heat or cold, can impact the VANOS system’s performance. Extreme conditions can affect the viscosity of the oil, disrupt the operation of solenoids, and lead to timing irregularities.
Identifying the specific cause behind VANOS issues may require a combination of visual inspections, diagnostic tools, and professional expertise. By understanding these potential causes, you can work towards addressing the root of the problem and implementing the necessary repairs or maintenance procedures.
Diagnostic Techniques for VANOS Issues
Accurately diagnosing VANOS issues in the BMW M54 engine requires a systematic approach and the utilization of appropriate diagnostic techniques. Here are some effective methods to assess VANOS problems:
Visual Inspection: Begin by performing a visual inspection of the VANOS components and surrounding areas. Look for any signs of oil leaks, damaged seals, or loose connections. Inspect the VANOS solenoids, gears, and pistons for wear, debris, or abnormal physical conditions.
Fault Code Reading: Utilize a diagnostic scanner or BMW-specific diagnostic tool to read the engine control unit (ECU) for fault codes related to the VANOS system. Fault codes can provide valuable insights into specific issues and help narrow down the troubleshooting process. Here are some of the common VANOS fault codes that you might encounter.
- P1525 A’ Camshaft Position Actuator Control Open Circuit (Bank 1)
- P1531 B’ Camshaft Position Actuator Control Open Circuit (Bank 1)
- P1523 Camshaft position actuator is jammed, exhaust
- P1529 B’ Camshaft Position Actuator Control Circuit Signal Low (Bank 1)
- P1524 ‘A’ Camshaft Position Actuator Control Circuit Signal High (Bank 1)
- P1530 ‘B’ Camshaft Position Actuator Control Circuit Signal High (Bank 1) (S54 to 09/00: Throttle Valve Position Control, Control Deviation)
- P0011 A’ Camshaft Position Timing Over-Advanced or System Performance (Bank 1)
- P0012 A’ Camshaft Position Timing Over-Retarded (Bank 1)
- P0014 B’ Camshaft Position Timing Over-Advanced or System Performance (Bank 1)
- P0015 ‘B’ Camshaft Position Timing Over-Retarded (Bank 1)
VANOS Function Testing: BMW diagnostic tools often have specific functions to test the VANOS system’s operation. These tests involve activating and monitoring the VANOS solenoids, assessing the response and timing adjustments of the camshafts. This allows you to evaluate the VANOS system’s functionality and identify any irregularities.
Oil Pressure and Flow Analysis: Assessing the oil pressure and flow to the VANOS system is crucial. Using specialized tools, measure the oil pressure at various points within the VANOS system. Ensure that the pressure is within the manufacturer’s specified range and that there are no restrictions or blockages affecting oil flow.
Oil Quality and Oil Filter Inspection: Check the quality and condition of the engine oil. Look for any signs of contamination or debris that could impact the VANOS system’s performance. Additionally, inspect the oil filter for clogs or excessive debris, as these can affect oil flow and contribute to VANOS issues.
Professional Assistance: If the diagnosis remains uncertain or complex, it is advisable to seek assistance from a qualified BMW technician or mechanic with expertise in VANOS systems. Their specialized knowledge and access to advanced diagnostic tools can help pinpoint the exact cause of the VANOS issues and provide accurate recommendations for repair or maintenance.
By employing these diagnostic techniques, you can gain a clearer understanding of the VANOS system’s condition and identify any underlying problems affecting its performance. This information will guide you in implementing the appropriate solutions to resolve the VANOS issues effectively.
In the next section, we will explore practical solutions to address VANOS problems, ensuring optimal performance and longevity for your BMW M54 engine.
Solutions for VANOS Issues
When faced with VANOS problems in the BMW M54 engine, it is crucial to implement appropriate solutions to restore optimal performance and ensure the longevity of the VANOS system. Here are some practical steps to address VANOS issues:
Oil System Maintenance: Regular oil changes using high-quality oil that meets BMW specifications are essential for maintaining the VANOS system’s health. Ensure the oil viscosity is correct for your specific engine variant. Follow the manufacturer’s recommended service intervals to prevent oil sludge buildup and maintain proper lubrication.
VANOS Solenoid Replacement: If faulty VANOS solenoids are identified as the cause of the problem, replacing them is often necessary. These solenoids control the oil pressure that actuates the VANOS system, and worn-out or malfunctioning solenoids can disrupt timing adjustments. Replace them with genuine BMW solenoids for optimal performance.
VANOS Seal Replacement: If worn-out or leaking seals are identified during the inspection, replacing them is recommended. These seals help maintain proper oil pressure and prevent oil leaks. Ensure the new seals are of high quality and designed specifically for the VANOS system in the BMW M54 engine.
VANOS System Cleaning: In cases where oil sludge or debris accumulation is evident, a thorough cleaning of the VANOS system may be necessary. This involves disassembling the VANOS unit, cleaning the components, and removing any obstructions that hinder proper functionality. Exercise caution and follow appropriate procedures or seek professional assistance to ensure a successful cleaning process.
Timing Chain and Guide Inspection: The VANOS system is connected to the engine’s timing chain and guides. If VANOS issues persist or there are indications of timing chain-related problems, such as rattling noises or excessive chain slack, it is recommended to inspect the timing chain, tensioner, and guides. Replace any worn-out or damaged components as needed.
Professional Repair and Calibration: In complex cases or if you are uncertain about the extent of the VANOS issues, it is advisable to consult a qualified BMW technician or mechanic. They have the expertise and specialized tools to diagnose and repair VANOS-related problems accurately. Additionally, they can perform necessary calibrations to ensure precise timing adjustments.
Regular maintenance, prompt identification of VANOS issues, and proper repairs are key to preserving the performance and reliability of the BMW M54 engine’s VANOS system. By implementing these solutions, you can address VANOS problems effectively and enjoy the optimal driving experience your BMW M54 engine has to offer.
